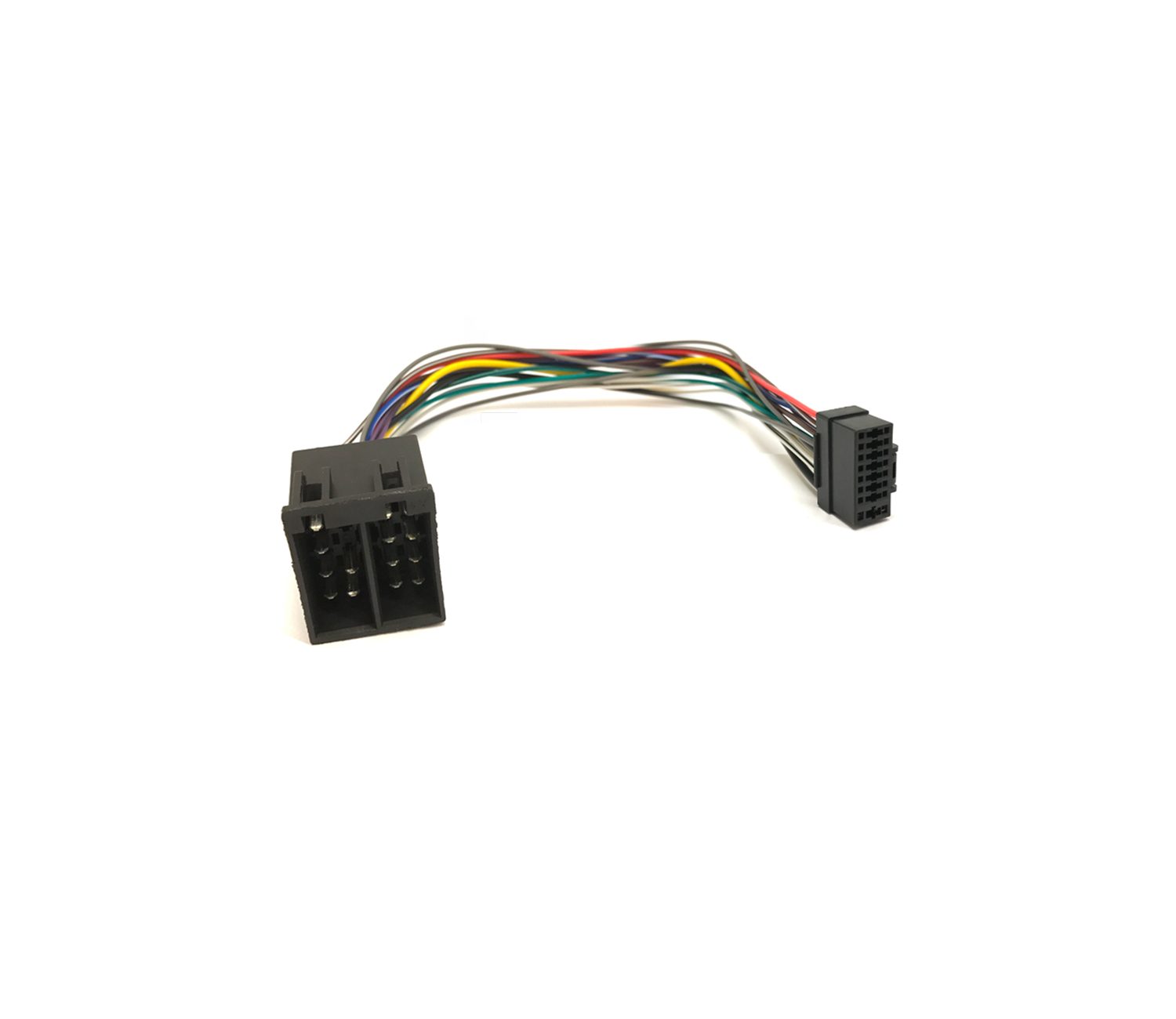

ISO adpater till MS-RA205
Produktspecifikation
Längd 20cm
Ansluts i A ingången hos MS-RA205
| YELLOW | BATTERY (+12 V constant) |
| RED | IGNITION (+12V switched) |
| BLACK | GROUND (-12v) |
| WHITE | SPEAKER ZONE 1 L (+) |
| WHITE/BLACK STRIPE | SPEAKER ZONE 1 L (-) |
| GREY | SPEAKER ZONE 1 R (+) |
| GREY/BLACK STRIPE | SPEAKER ZONE 1 R (-) |
| GREEN | SPEAKER ZONE 2 L (+) |
| GREEN/BLACK STRIPE | SPEAKER ZONE 2 L (-) |
| PURPLE | SPEAKER ZONE 2 R (+) |
| PURPLE/BLACK STRIPE | SPEAKER ZONE 2 R (-) |
| BROWN | DIM (+12V switched) |
| BLUE/WHITE STRIPE | STRIPE AMPLIFIER ON |
| BROWN/WHITE STRIPE | TEL MUTE/INTERRUPT AUX |
ISO Adapter för MS-RA205
Beställningsinformation
- I lager
- Begränsat antal
- Kontakta oss för leveranstid
Preliminärt lagersaldo, uppdateras varje timme.
Kontakta Återförsäljare för beställning.
| Artikelnummer | Benämning | Pris (inkl. moms) | |
|---|---|---|---|
| I lager | CAB001224 | ISO adpater till MS-RA205 | 245,00 kr |
Produktspecifikation
Längd 20cm
Ansluts i A ingången hos MS-RA205
| YELLOW | BATTERY (+12 V constant) |
| RED | IGNITION (+12V switched) |
| BLACK | GROUND (-12v) |
| WHITE | SPEAKER ZONE 1 L (+) |
| WHITE/BLACK STRIPE | SPEAKER ZONE 1 L (-) |
| GREY | SPEAKER ZONE 1 R (+) |
| GREY/BLACK STRIPE | SPEAKER ZONE 1 R (-) |
| GREEN | SPEAKER ZONE 2 L (+) |
| GREEN/BLACK STRIPE | SPEAKER ZONE 2 L (-) |
| PURPLE | SPEAKER ZONE 2 R (+) |
| PURPLE/BLACK STRIPE | SPEAKER ZONE 2 R (-) |
| BROWN | DIM (+12V switched) |
| BLUE/WHITE STRIPE | STRIPE AMPLIFIER ON |
| BROWN/WHITE STRIPE | TEL MUTE/INTERRUPT AUX |
