Expert Modular shunt
Ritningar & Manualer
Produktspecifikation
Supply voltage range 7..70Vdc
Supply current (@ 12V/ 24V/48V) 10mA / 6mA / 5mA
Input voltage range main battery (+B1) 1) 7..70Vdc
Specifikationer för komplett instrument 5056030
Input voltage range second and third battery (+B2, +B3) 1..70Vdc
Input current range -600..+600A
Battery capacity range 10..10000Ah
Operating temperature range -20..+50°C
Storage temperature range -30..+70°C
Voltage measurement accuracy ± 0.3%
Current measurement accuracy ± 0.4%
Dimensions: Se ritning
Weights Shunt: 290grams / CDU 70grams
Protection class: IP20 (CDU frontpanel only IP65)
Standards: CE certified (EMC Directive 2014/30/EU) including EN50498 Automotive EMC

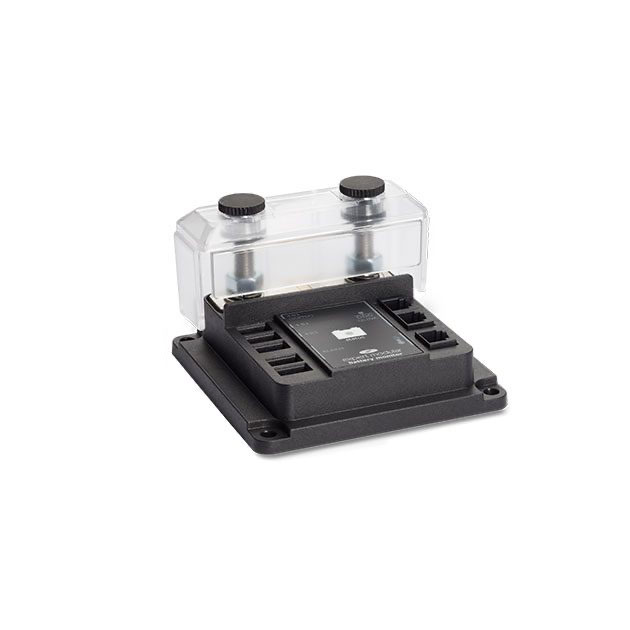

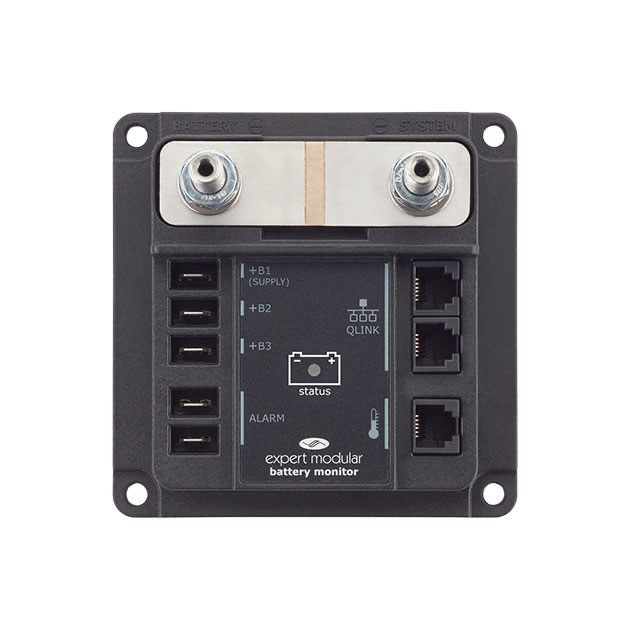

Shunt till Expert Modular instrument.
Beställningsinformation
- I lager
- Begränsat antal
- Kontakta oss för leveranstid
Preliminärt lagersaldo, uppdateras varje timme.
Kontakta Återförsäljare för beställning.
| Artikelnummer | Benämning | Pris (inkl. moms) | |
|---|---|---|---|
| Begränsat antal | 5056030-1 | Expert Modular shunt | 2 395,00 kr |
