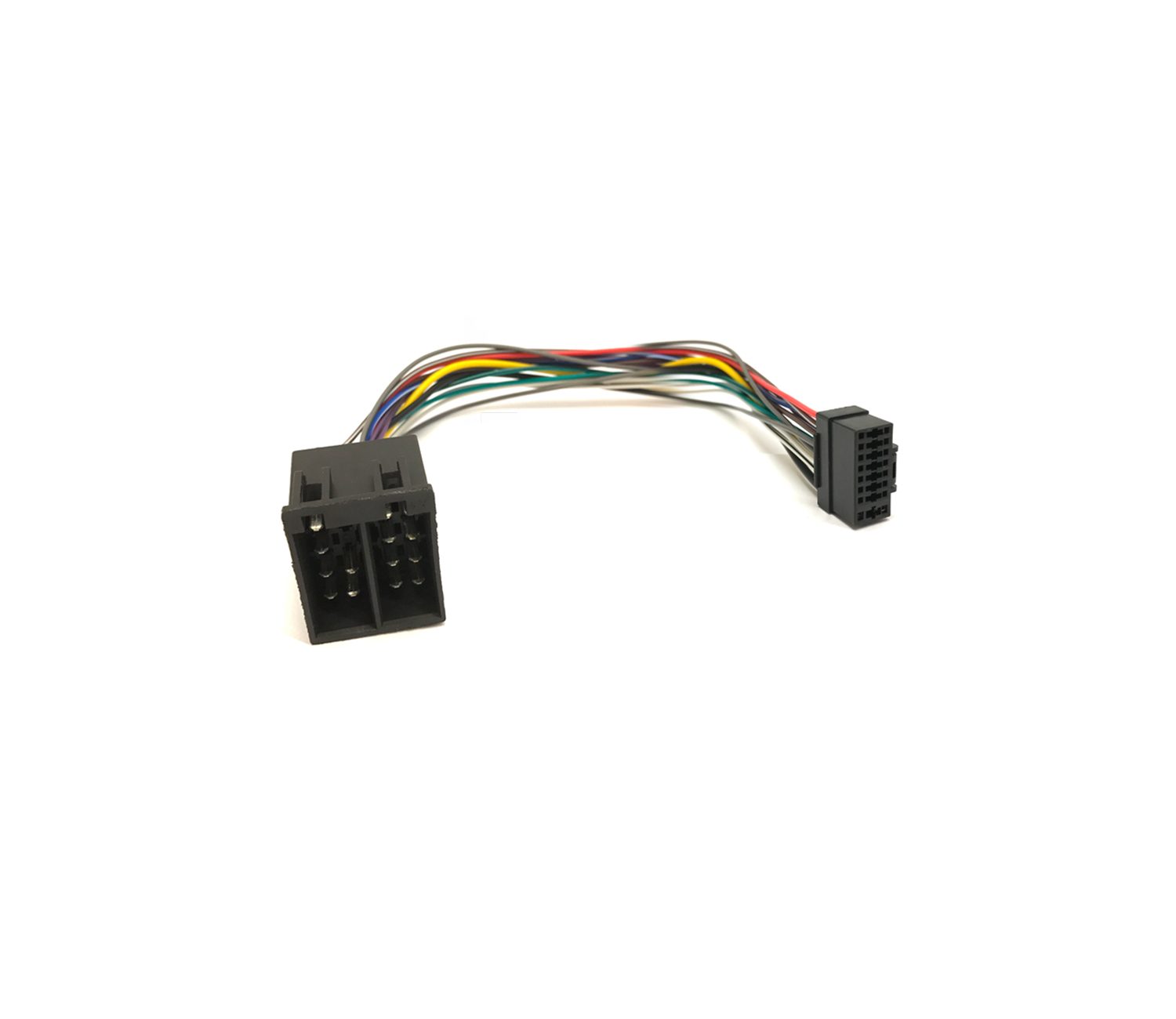

ISO-adapter til MS-RA205
Produktspesifikasjon
Längd 20cm
Ansluts i A ingången hos MS-RA205
| YELLOW | BATTERY (+12 V constant) |
| RED | IGNITION (+12V switched) |
| BLACK | GROUND (-12v) |
| WHITE | SPEAKER ZONE 1 L (+) |
| WHITE/BLACK STRIPE | SPEAKER ZONE 1 L (-) |
| GREY | SPEAKER ZONE 1 R (+) |
| GREY/BLACK STRIPE | SPEAKER ZONE 1 R (-) |
| GREEN | SPEAKER ZONE 2 L (+) |
| GREEN/BLACK STRIPE | SPEAKER ZONE 2 L (-) |
| PURPLE | SPEAKER ZONE 2 R (+) |
| PURPLE/BLACK STRIPE | SPEAKER ZONE 2 R (-) |
| BROWN | DIM (+12V switched) |
| BLUE/WHITE STRIPE | STRIPE AMPLIFIER ON |
| BROWN/WHITE STRIPE | TEL MUTE/INTERRUPT AUX |
ISO Adapter för MS-RA205
Bestillingsinformasjon
- På lager
- Begrenset antall
- Tomt på lager
Lagerstatus oppdateres hver time og er kun et estimat
Kontakt Forhandlere for bestilling.
| Artikkelnummer | Betegnelse | Pris (inkl. mva) | |
|---|---|---|---|
| På lager | CAB001224 | ISO-adapter til MS-RA205 | 240,00 kr |
