Expert Modular shunt
Ohjeet & Käsikirjat
Tuotteen erittely
Supply voltage range 7..70Vdc
Supply current (@ 12V/ 24V/48V) 10mA / 6mA / 5mA
Input voltage range main battery (+B1) 1) 7..70Vdc
Specifikationer för komplett instrument 5056030
Input voltage range second and third battery (+B2, +B3) 1..70Vdc
Input current range -600..+600A
Battery capacity range 10..10000Ah
Operating temperature range -20..+50°C
Storage temperature range -30..+70°C
Voltage measurement accuracy ± 0.3%
Current measurement accuracy ± 0.4%
Dimensions: Se ritning
Weights Shunt: 290grams / CDU 70grams
Protection class: IP20 (CDU frontpanel only IP65)
Standards: CE certified (EMC Directive 2014/30/EU) including EN50498 Automotive EMC

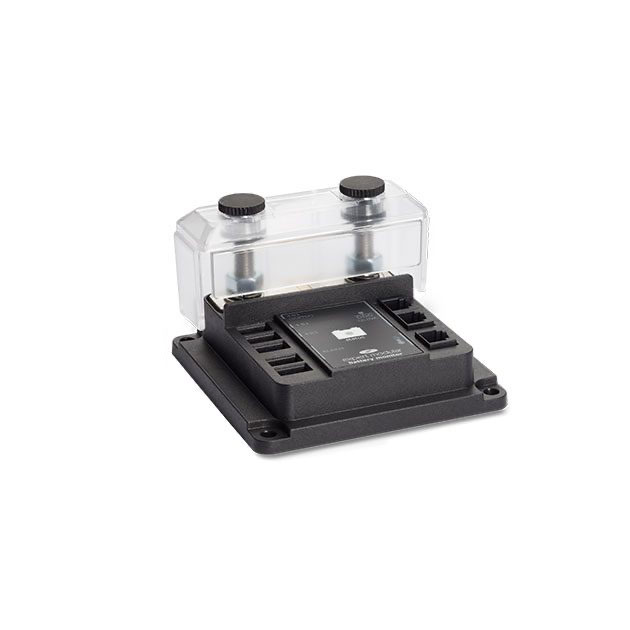

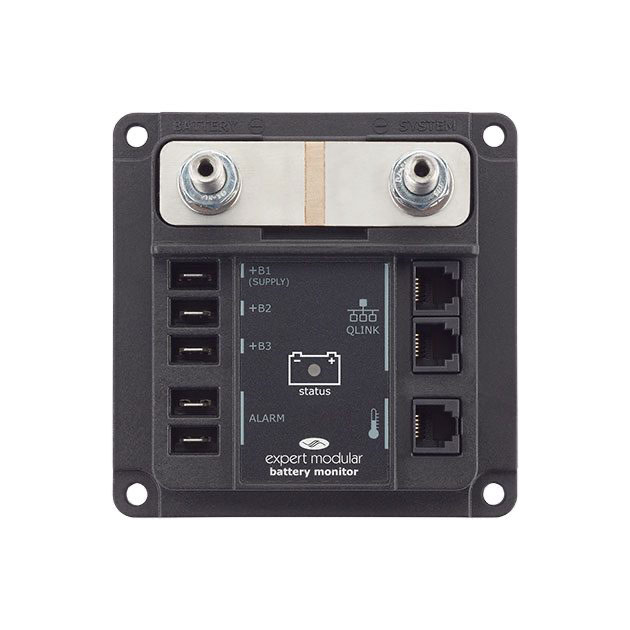

Shunt till Expert Modular instrument.
Tilaustiedot
- Varastossa
- Rajoitettu määrä
- Varasto loppu
Varastotilanne päivittyy kerran tunnissa ja on vain arvio
Ota yhteyttä Jälleenmyyjä tilaamista varten.
| Artikkelinumero | Nimitys | Hinta (sis. alv.) | |
|---|---|---|---|
| Rajoitettu määrä | 5056030-1 | Expert Modular shunt | 208,00 € |
