Trimplan kit aluminium
Produkt specifikation

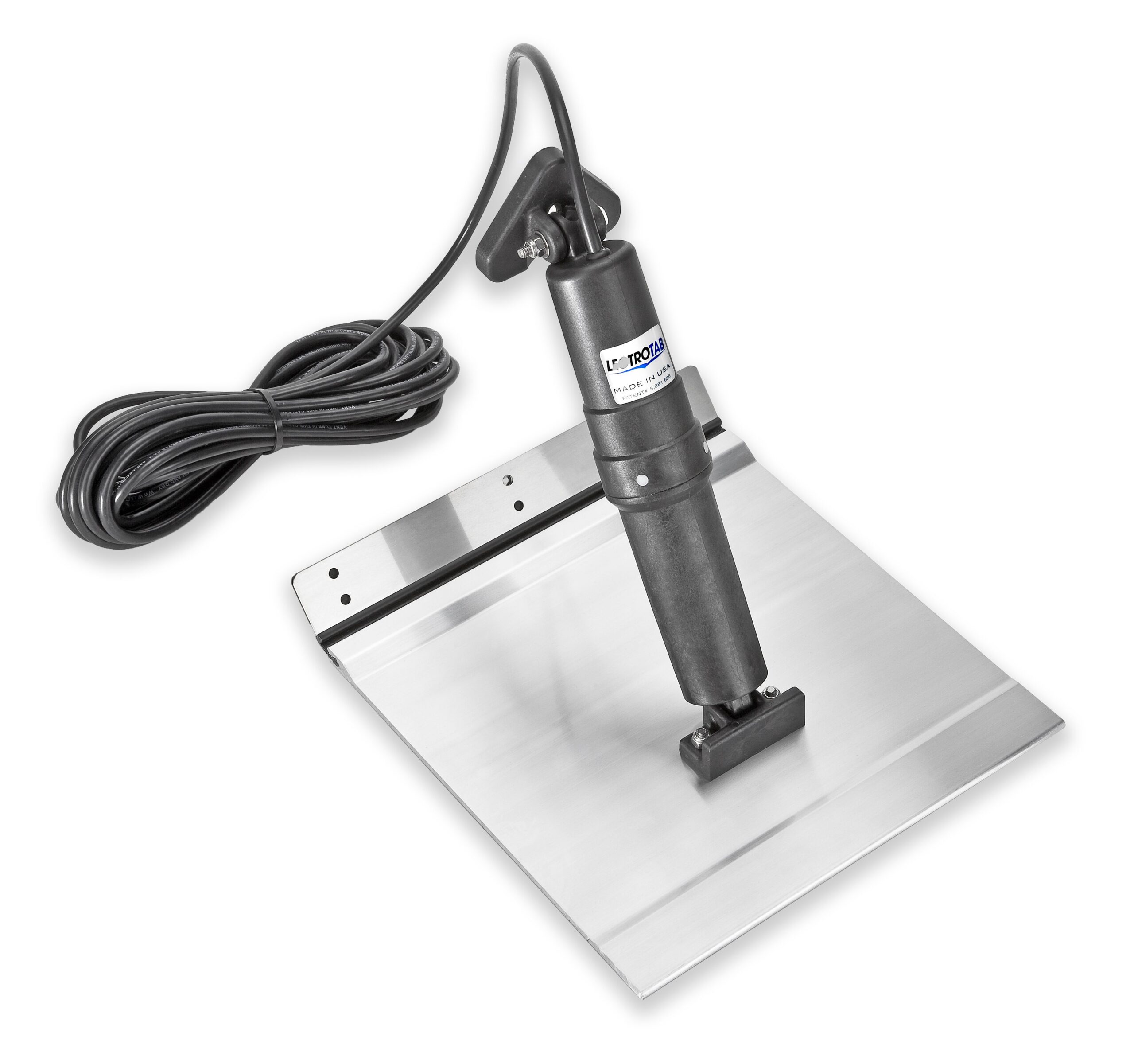

Trimplankit med to cylindre (A-BK-13) med 7m kabel hver og to aluminium trimplaner. Trim plan panel bestilles separat afhængig af hvilket design der ønskes.
Se anbefalede størrelser i tabellen nedenfor.
Varenummer | Størrelse (DxB) | Rek. Bådelængde |
XKA9x9A | 9×9” 23x23cm | 14-19’ 4-6m |
XKA9x12A | 9×12” 23x30cm | 16-25’ 5-7,5m |
XKA9x18A | 9×18” 23x46cm | 21-30’ 6,5-9m |
XKA12x9A | 12×9” 30x23cm | 18-32’ 5,5-8,5m |
XKA12x12A | 12×12” 30x30cm | 18-32’ 5,5-9,5m |
XKA12x18A | 12×18” 30x46cm | 20-40’ 6-12m |
XKA12x24A | 12×24” 30x61cm | 28-48’ 8,5-14,5m |

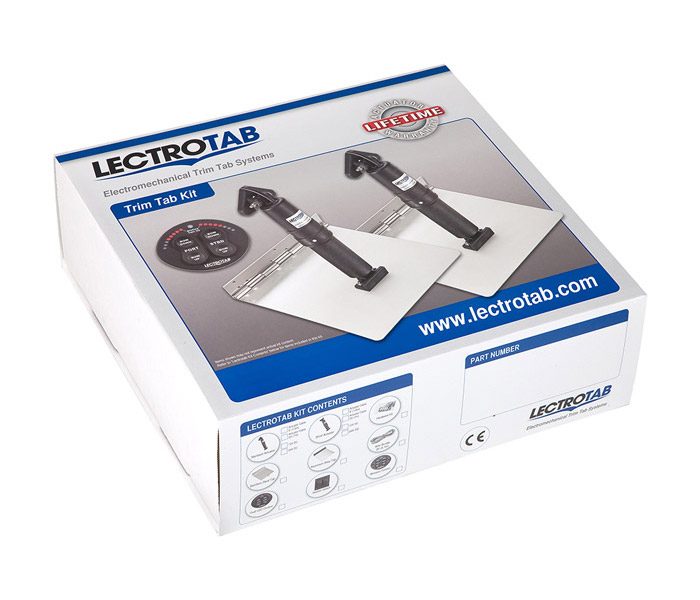

Trimplanpakke indeholdende to trimplancylindre og to aluminium trimplaner, suppleret med trimplanpanel i ønsket design.
Aluminiumspaneler anbefales til aluminiumsbåde.
Se anbefalingstabellen nedenfor for at vælge størrelsen på trimplan baseret på bådstørrelse.
Generel information om trimpaneler, cylindre, trim og tilslutning kan findes nedenfor Lectrotab Support her!

Ordreinformation
- På lager
- Begrænset beløb
- Ikke på lager
Lagerstatus opdateres en gang i timen og er kun et skøn
Kontakt Forhandler at bestille.
Varenummer | Betegnelse | Pris (inkl. moms) | |
---|---|---|---|
På lager | XKA9X9A | Trimplanskit 9x9 ALU ex.panel | 6 655,00 kr. |
På lager | XKA9X18A | Trimplanskit 9x18 ALU ex.panel | 7 705,00 kr. |
På lager | XKA9X12A | Trimplanskit 9x12 ALU ex.panel | 7 035,00 kr. |
På lager | XKA12X9A | Trimplanskit 12x9 ALU ex.panel | 6 795,00 kr. |
På lager | XKA12X24A | Trimplanskit 12x24 ALU ex.pane | 8 970,00 kr. |
På lager | XKA12X18A | Trimplanskit 12x18 ALU ex.pane | 8 035,00 kr. |
Begrænset beløb | XKA12X12A | Trimplanskit 12x12 ALU ex.pane | 7 100,00 kr. |
Produkt specifikation
Trimplankit med to cylindre (A-BK-13) med 7m kabel hver og to aluminium trimplaner. Trim plan panel bestilles separat afhængig af hvilket design der ønskes.
Se anbefalede størrelser i tabellen nedenfor.
Varenummer | Størrelse (DxB) | Rek. Bådelængde |
XKA9x9A | 9×9” 23x23cm | 14-19’ 4-6m |
XKA9x12A | 9×12” 23x30cm | 16-25’ 5-7,5m |
XKA9x18A | 9×18” 23x46cm | 21-30’ 6,5-9m |
XKA12x9A | 12×9” 30x23cm | 18-32’ 5,5-8,5m |
XKA12x12A | 12×12” 30x30cm | 18-32’ 5,5-9,5m |
XKA12x18A | 12×18” 30x46cm | 20-40’ 6-12m |
XKA12x24A | 12×24” 30x61cm | 28-48’ 8,5-14,5m |
